Canon imagePROGRAF TM-340

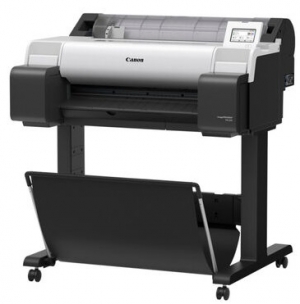

Plotter Canon imagePROGRAF TM-340
PRECIZIA INTALNESTE PERFORMANTA SI PRODUCTIVITATEA AVANSATE
Plotter Canon imagePROGRAF TM-340
Printer Type: 5 Colours, 36"", 4.3” operational panel
Print Technology: Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)
Print Resolution: 2,400 x 1,200 dpi
Number of Nozzles: Total : 15360 nozzles MBK : 5120 nozzles BK, C, M, Y: 2560 nozzles each
Line Accuracy: ±0.1% or less, User adjustments necessary. Printing environment and media must match those used for the adjustments.
Nozzle Pitch: 1,200 dpi x 2 lines
Ink Droplet Size: minimum 5pl per colour
Ink Capacity: Bundled Starter Ink: 300ml (80ml for MBK, 55mlx4 for BK, C, M, Y)
Sales Ink: 55ml (MBK, BK, C, M, Y)
Ink Type: Pigment inks : 5 colours MBK/BK/C/M/Y
Printer Languages: HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)
Standard Memory: 2GB, Expansion slot : No
Hard Drive: N/A
Print Speed:
CAD Drawing: Plain paper (A1): 0:21 (Fast Economy Mode) 2.7ppm
Plain paper (A0): 0:41 (Fast Economy Mode), 0:42 (Fast), 1:25 (Standard)
Poster: Plain paper (A0): 0:43 (Fast Economy Mode), 0:43 (Fast), 1:25 (Standard)
Heavy coated paper (A0): 1:42 (Fast), 3:10 (Standard)
Media Handling
Media Feed and Output: Roll Paper : One Roll, Upper-loading, Front Output
Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)
Media Width: Roll paper: 203.2 - 917mm, Cut sheet: 210 - 917mm
Media Thickness: Roll/Cut : 0.07mm - 0.8mm
Minimum Printable Length: Roll paper: 203.2mm, Cut sheet: 279.4mm
Maximum Printable Length: Roll paper : 18m (varies according to the OS and application), Cut sheet : 1.6m
Maximum Media Roll Diameter: 150mm
Media Core Size: Internal diameter of roll core: 2""/3"" (Optional)
Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm
Cut sheet (Others): Top: 20mm, Bottom:20mm, Side:3mm
Margins Printable Area: Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm
Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm
Media Feed Capacity: Roll Paper: One roll, Cut Sheet: 1 sheet
Maximum Number of Delivered Prints: Standard position - 1 sheet
Standard Interfaces: USB A Port: N/A, USB B Port: Hi-Speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b
Consumables
User Replaceable Items: Ink Tank: M: PFI-031(55ml), MBK/BK/C/Y:PFI-030(55ml)
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
What's in the Box:
Printer, Printer Stand, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Basic Printer Stand Setup Guide, Notice for PosterArtist WEB
Optional Items: 2""/3"" Roll Holder: RH2-35, IC Card Reader Holder: RA-02
